When to use REST, SOA, and Microservices

Here’s a breakdown of the core differences between REST, SOA, and Microservices and when you might choose each:

1. REST (Representational State Transfer)

What it is: REST is an architectural style for designing networked applications. It uses HTTP protocols to enable communication between systems by exposing stateless APIs.

Key Characteristics:

• Communication: Uses standard HTTP methods (GET, POST, PUT, DELETE).

• Data Format: Commonly JSON or XML.

• Stateless: Every request from the client contains all the information the server needs to process it.

• Scalability: Highly scalable due to statelessness.

• Simplicity: Easy to implement and test.

Best Use Case:

• For systems requiring lightweight, simple API communication (e.g., web applications or mobile apps).

2. SOA (Service-Oriented Architecture)

What it is: SOA is an architectural style where applications are composed of loosely coupled services that communicate with each other. Services can reuse components and are designed for enterprise-level solutions.

Key Characteristics:

• Service Bus: Often uses an Enterprise Service Bus (ESB) to connect and manage services.

• Protocol Support: Supports various protocols (SOAP, REST, etc.).

• Centralized Logic: Often has a centralized governance structure.

• Tightly Controlled: Services are larger and generally less independent.

• Reusability: Focuses on reusing services across applications.

Best Use Case:

• For large enterprise systems needing centralized coordination and integration across multiple systems (e.g., ERP systems).

3. Microservices

What it is: Microservices is an architectural style that structures an application as a collection of small, independent services that communicate with each other through lightweight mechanisms like REST, gRPC, or messaging queues.

Key Characteristics:

• Independence: Each microservice is independently deployable and scalable.

• Data Storage: Services manage their own databases, ensuring loose coupling.

• Polyglot Programming: Different services can be built using different programming languages and frameworks.

• Decentralized Logic: No central service bus; services manage their own logic.

Best Use Case:

• For dynamic, scalable, and high-performing distributed applications (e.g., modern e-commerce platforms, video streaming services).

Comparison Table

Aspect	REST	SOA	Microservices
Style	API design standard	Architectural style	Architectural style
Communication	HTTP (stateless)	Mixed protocols (SOAP, REST)	Lightweight (REST, gRPC)
Governance	Decentralized	Centralized	Decentralized
Granularity	API endpoints	Coarser-grained services	Fine-grained services
Scalability	Horizontal scaling	Limited by ESB scaling	Horizontally scalable
Data Handling	Exposed via APIs	Shared and reusable	Independent databases
Best For	Web/mobile apps	Large enterprises	Modern cloud-native apps

Which to Choose and Why

1. Choose REST:

   • If your system requires lightweight and stateless API communication.

   • Ideal for building web services and mobile APIs quickly and easily.

2. Choose SOA:

   • For large enterprises where services need to be reused across multiple systems.

   • When you need centralized management and tight integration.

3. Choose Microservices:

   • When building a dynamic, scalable, and cloud-native application.

   • If you need flexibility to independently deploy, scale, and maintain different components.

Recommendation

For modern, scalable, and agile systems, Microservices are generally the best choice due to their modularity, independence, and ease of scaling. However, if you're working in an enterprise environment that requires centralization and reusability across legacy systems, SOA may be better. REST, on the other hand, is not an architecture but an API standard and can be used within both SOA and Microservices architectures.

Securing an Azure SQL Database

 Securing an Azure SQL Database is critical to protect sensitive data and ensure compliance with regulations. Here are some of the best security strategies and practices:

1. Authentication and Access Control

• Use Microsoft Entra ID (formerly Azure AD) for centralized identity and access management.

• Implement role-based access control (RBAC) to grant users the least privileges necessary.

• Avoid using shared accounts and enforce multi-factor authentication (MFA) for all users.

2. Data Encryption

• Enable Transparent Data Encryption (TDE) to encrypt data at rest automatically.

• Use Always Encrypted to protect sensitive data, ensuring it is encrypted both at rest and in transit.

• Enforce TLS (Transport Layer Security) for all connections to encrypt data in transit.

3. Firewall and Network Security

• Configure server-level and database-level firewalls to restrict access by IP address.

• Use Virtual Network (VNet) integration to isolate the database within a secure network.

• Enable Private Link to access the database securely over a private endpoint.

4. Monitoring and Threat Detection

• Enable SQL Auditing to track database activities and store logs in a secure location.

• Use Advanced Threat Protection to detect and respond to anomalous activities, such as SQL injection attacks.

• Monitor database health and performance using Azure Monitor and Log Analytics.

5. Data Masking and Row-Level Security

• Implement Dynamic Data Masking to limit sensitive data exposure to non-privileged users.

• Use Row-Level Security (RLS) to restrict access to specific rows in a table based on user roles.

6. Backup and Disaster Recovery

• Enable geo-redundant backups to ensure data availability in case of regional failures.

• Regularly test your backup and restore processes to ensure data recovery readiness.

7. Compliance and Governance

• Use Azure Policy to enforce security standards and compliance requirements.

• Regularly review and update security configurations to align with industry best practices.

8. Regular Updates and Patching

• Ensure that the database and its dependencies are always up to date with the latest security patches.

By implementing these strategies, you can significantly enhance the security posture of your Azure SQL Database.

Here's a comparison of Apache Spark, Apache Flink, Azure Machine Learning, and Azure Stream Analytics, along with their use cases:

1. Apache Spark

• Purpose: A distributed computing framework for big data processing, supporting both batch and stream processing.

• Strengths:

  • High-speed in-memory processing.

  • Rich APIs for machine learning (MLlib), graph processing (GraphX), and SQL-like queries (Spark SQL).

  • Handles large-scale data transformations and analytics.

• Use Cases:

  • Batch processing of large datasets (e.g., ETL pipelines).

  • Real-time data analytics (e.g., fraud detection).

  • Machine learning model training and deployment.

2. Apache Flink

• Purpose: A stream processing framework designed for real-time, stateful computations.

• Strengths:

  • Unified model for batch and stream processing.

  • Low-latency, high-throughput stream processing.

  • Advanced state management for complex event processing.

• Use Cases:

  • Real-time anomaly detection (e.g., IoT sensor data).

  • Event-driven applications (e.g., recommendation systems).

  • Real-time financial transaction monitoring.

3. Azure Machine Learning

• Purpose: A cloud-based platform for building, training, and deploying machine learning models.

• Strengths:

  • Automated ML for quick model development.

  • Integration with Azure services for seamless deployment.

  • Support for distributed training and MLOps.

• Use Cases:

  • Predictive analytics (e.g., customer churn prediction).

  • Image and speech recognition.

  • Real-time decision-making models (e.g., personalized recommendations).

4. Azure Stream Analytics

• Purpose: A fully managed service for real-time stream processing in the Azure ecosystem.

• Strengths:

  • Serverless architecture with easy integration into Azure Event Hubs and IoT Hub.

  • Built-in support for SQL-like queries on streaming data.

  • Real-time analytics with minimal setup.

• Use Cases:

  • Real-time telemetry analysis (e.g., IoT device monitoring).

  • Real-time dashboarding (e.g., website traffic monitoring).

  • Predictive maintenance using streaming data.

Key Differences

Feature/Tool	Apache Spark	Apache Flink	Azure Machine Learning	Azure Stream Analytics
Processing Type	Batch & Stream	Stream (with Batch)	ML Model Training	Real-Time Stream
Latency	Moderate	Low	N/A (ML-focused)	Low
Integration	Hadoop, Kafka	Kafka, HDFS	Azure Ecosystem	Azure Ecosystem
Use Case Focus	Big Data Analytics	Real-Time Processing	Machine Learning	Real-Time Analytics

Build a Redis-like Distributed In-Memory Cache

  This tests:

• System design depth

• Understanding of distributed systems

• Trade-off navigation (CAP, consistency, latency)

• Real-world edge case handling

Let’s go step by step and design Redis-like cache from first principles, not using cloud-managed services.

---

🚀 Goal: Build a Redis-like Distributed In-Memory Cache

---

🧾 1. Requirements Gathering (Clarify with interviewer)

🔹 Functional

• Support GET, SET, DEL, TTL

• Handle concurrent reads/writes

• Cache keys across multiple nodes

• Optional: Support pub/sub, data structures (hash, list)

🔹 Non-Functional

• Low latency (<1ms typical)

• High availability & fault tolerance

• Scalable horizontally

• Eventual or strong consistency

• Memory-optimized with TTL eviction

Absolutely! Back-of-the-envelope estimations are crucial in system design interviews — they demonstrate your pragmatism, ability to roughly size a system, and to make sound trade-offs.

Let’s break it down for your Redis-like Distributed In-Memory Cache System:

---

🧠 Scenario:

Let’s say you're designing this for an AI/ML pipeline system, like Google's CMCS ML. It caches:

• Intermediate model data

• Feature store results

• Token metadata

• Configuration data

---

📌 Estimation Goals:

We’ll estimate for:

What	Example
🔹 Number of keys	e.g., 100 million
🔹 Size per key	e.g., average 1KB
🔹 Total memory footprint	GB / TB scale
🔹 QPS (Queries Per Second)	For read/write traffic
🔹 Node count and distribution
🔹 Network bandwidth
🔹 TTL / Eviction rates

---

⚙️ Step-by-Step Estimation

🔹 1. Number of Keys

Let’s say each ML workflow (pipeline) generates:

• 10k intermediate cacheable entries

• 1M workflows per day (across all users)

10k keys/workflow × 1M workflows/day = 10B keys/day

But not all stay in memory. We retain 10% for hot data in memory:

• 10B × 10% = 1B keys cached at peak

---

🔹 2. Average Key Size

Let’s assume:

• Key name: ~100 bytes

• Value: ~900 bytes

• TTL/metadata: ~20 bytes overhead

Total = 1KB per key

---

📦 3. Total Memory Requirement

1B keys × 1KB = 1,000,000,000 KB = ~1 TB

So you’d need ~1 TB of RAM across your cluster

Let’s budget for 30% overhead (replication, GC, fragmentation):

➡️ Effective: ~1.3 TB RAM

---

🧵 4. QPS (Queries Per Second)

Assume:

• Each key gets ~10 reads per day → 10B reads/day

• 1% of keys get hit 90% of the time (Zipfian)

10B reads/day ≈ 115,740 reads/sec
Writes: 1B/day ≈ 11,500 writes/sec

Target QPS:

• Read QPS: 100K–150K

• Write QPS: 10K–20K

---

🧑‍🤝‍🧑 5. Number of Nodes

If 1 machine supports:

• 64 GB usable memory

• 10K QPS (to be safe)

• 10 Gbps NIC

Then:

• RAM: 1.3 TB / 64 GB ≈ 20 nodes

• QPS: 150K / 10K = 15 nodes

• Plan for ~25–30 nodes (for headroom and HA)

---

🔁 6. Replication Overhead

Assuming:

• 1 replica per shard for failover

• 2× memory and network cost

➡️ RAM required: ~2.6 TB ➡️ Bandwidth: double write traffic (~20K writes/sec * 1KB = ~20 MB/sec replication stream)

---

📶 7. Network Bandwidth

Let’s estimate:

• 150K reads/sec × 1KB = 150 MB/s

• 20K writes/sec × 1KB = 20 MB/s

• Replication = 20 MB/s

📌 Each node should handle:

• Read bandwidth: ~6 MB/s

• Write + replication: ~2 MB/s

• Easily handled by 10 Gbps NIC

---

⏳ 8. Eviction Rate

Assuming TTL = 1 hour, and 1B keys:

• Evictions per second = 1B / (60×60) ≈ 277K keys/sec

Eviction algorithm must be efficient:

• LRU clock algo or async TTL scanner needed

---

✅ Final Summary

Metric	Estimation
Total keys	1 billion
Avg size per key	1 KB
Total RAM (w/ overhead)	~2.6 TB (with replication)
Nodes	25–30 (for HA, QPS, memory headroom)
Read QPS	~150K/sec
Write QPS	~15–20K/sec
Eviction rate	~250–300K/sec
Network per node	~10 MB/s total (within 10Gbps budget)

---

🎯 Bonus: What Google Might Ask

What would change if you needed to support multi-tenant isolation?
→ Talk about namespacing keys, quota control, per-tenant memory buckets.

What if a single user uploads a 1GB object?
→ Chunk large values or offload to Blob storage and cache pointer.

How would you reduce memory cost?
→ TTL tuning, compression (LZ4), lazy expiration.

---

🧱 2. High-Level Architecture

                 +------------------------+
                 |  Client Applications   |
                 +------------------------+
                             |
                             v
                    +------------------+
                    |  Coordinator /   |
                    |  Cache Router    | (Optional)
                    +------------------+
                             |
          +------------------+------------------+
          |                                     |
     +----------+                        +-------------+
     |  Cache    |  <-- Gossip/Heartbeat -->  |  Cache     |
     |  Node A   |        Protocol             |  Node B    |
     +----------+                        +-------------+
          |                                     |
     +------------+                       +-------------+
     |  Memory DB |                       |  Memory DB  |
     +------------+                       +-------------+

---

🧠 3. Core Components

🔸 a. Data Storage (In-Memory)

• Use hash maps in memory for key-value store

• TTLs stored with each key (for expiry eviction)

• Optionally support data types like list, hash, etc.

store = {
  "foo": { value: "bar", expiry: 1681450500 },
  ...
}

🔸 b. Shard & Partition

• Use consistent hashing to assign keys to nodes

• Each key K → hash(K) % N where N = number of virtual nodes

This avoids rehashing all keys when nodes are added/removed

🔸 c. Cache Router / Coordinator

• Client can compute hash OR use a proxy router to route to correct cache node

• Think Twemproxy or Envoy as L7 proxy

🔸 d. Replication

• Master-Replica model

• Writes go to master → replicate to replica (async or sync)

• Replicas take over on master failure

Node A (Master)
  └── Replica A1

🔸 e. Eviction Strategy

• Support TTL for automatic key expiry

• Support LRU / LFU / random eviction when memory full

• Track access counters for eviction ranking

🔸 f. Concurrency

• Use read-write locks or CAS for thread-safe operations

• Each node is single-threaded (like Redis) or use event-loop

---

🔁 4. Replication and Fault Tolerance

Gossip/Heartbeat

• Nodes send periodic heartbeats to detect failures

• Use Raft or Gossip protocols for membership

Failover

• If a master dies → elected replica takes over

• Redis uses Redis Sentinel to coordinate failover

---

🧪 5. Optional Features

Feature	Description
Pub/Sub	Add pub/sub channels per key prefix
Persistence	Periodically write snapshots to disk (RDB), or append-only logs (AOF)
Backpressure	Queue or reject new writes if memory full
Client Library	SDKs to abstract hash ring + failover

---

🔁 6. CAP Trade-off

CAP Property	Redis Default
Consistency	Eventual (async replication)
Availability	High (failover supported)
Partition Tolerance	Yes

---

📊 Metrics to Expose

• Hit/Miss rate

• Memory usage

• Eviction count

• Node replication lag

• Key distribution balance

---

🧠 Questions Google May Ask You During This Design

• How would you handle hot keys (one key accessed by many nodes)?

• How do you rebalance keys after node failure?

• Would you support atomic operations (INCR, DECR)?

• How do you prevent cache stampede (multiple clients recomputing a missing key)?

• How do you handle large objects that exceed single node memory?

---

🛠️ Tech Stack (if you had to build it)

Component	Tech
Cache server	C++ / Rust / Go (like Redis)
Hashing & comm	Consistent hashing + TCP sockets / gRPC
Replication	Raft or custom pub/sub protocol
Persistence	RocksDB / Flat file / Append logs
Observability	Prometheus + Grafana



---

Perfect — let’s walk through each of those Staff-level system design questions, and I’ll give you solid answers with reasoning, trade-offs, and implementation suggestions. You can use these to explain your decisions clearly in the interview.

---

🔥 1. How would you handle hot keys (one key accessed by many nodes)?

Problem:

• One key (like "user:token:123") gets disproportionate access → overloads one node.

✅ Solutions:

1. Key Replication (Read Replicas):

   • Replicate hot key across multiple nodes.

   • Client-side read load balancing (randomly pick from replicas).

   • Write goes to master → async to replicas.

2. Key Sharding (Virtual Keys):

   • Split key logically, e.g., "video:views" → video:views:1, ...:2

   • Clients randomly select a shard for read/write → reduce contention.

   • Aggregate during reads (costly but effective).

3. Request Deduplication & Caching at Edge:

   • Use edge cache (like CDN or client-side cache) for super-hot keys.

4. Rate Limiting / Backpressure:

   • Throttle requests to that key, or queue them on overload.

Interview Tip:

Emphasize dynamic detection of hot keys (via metrics), and adaptive replication or redirection.

---

💡 2. How do you rebalance keys after node failure?

Problem:

• Node failure → key space imbalance.

• Some nodes overloaded, others underused.

✅ Solutions:

1. Consistent Hashing + Virtual Nodes:

   • Redistribute virtual nodes (vNodes) from failed node to others.

   • Only keys for those vNodes get rebalanced — minimal movement.

2. Auto-Failover & Reassignment:

   • Use heartbeat to detect failure.

   • Other nodes take over lost slots or ranges.

3. Key Migration Tools:

   • Background rebalance workers move keys to even out load.

   • Ensure write consistency during move via locking/versioning.

4. Client-Side Awareness:

   • Clients get updated ring view and re-route requests accordingly.

Interview Tip:

Talk about graceful degradation during rebalancing and minimizing downtime.

---

⚙️ 3. Would you support atomic operations (INCR, DECR)?

✅ Yes — atomic operations are essential in a caching layer (e.g., counters, rate limits, tokens).

Implementation:

1. Single-Threaded Execution Model:

   • Like Redis: handle each command sequentially on single-threaded event loop → natural atomicity.

2. Compare-And-Swap (CAS):

   • For multi-threaded or multi-process setups.

   • Use version numbers or timestamps to detect stale updates.

3. Locks (Optimistic/Pessimistic):

   • Apply locks on keys for write-modify-write operations.

   • Use with caution to avoid performance degradation.

4. Use CRDTs (Advanced Option):

   • Conflict-free data types (e.g., GCounter, PNCounter) for distributed atomicity.

Interview Tip:

Highlight that simplicity, speed, and correctness are the priority. Lean toward single-threaded per-key operation for atomicity.

---

🧊 4. How do you prevent cache stampede (multiple clients recomputing a missing key)?

Problem:

• TTL expires → 1000 clients query same missing key → backend DDoS.

✅ Solutions:

1. Lock/SingleFlight:

   • First client computes and sets value.

   • Others wait for value to be written (or reused from intermediate store).

   • Go has sync/singleflight, Redis can simulate with Lua locks.

2. Stale-While-Revalidate (SWR):

   • Serve expired value temporarily.

   • In background, refresh the cache asynchronously.

3. Request Coalescing at API Gateway:

   • Gateway buffers duplicate requests until cache is ready.

4. Early Refresh Strategy:

   • Monitor popular keys.

   • Proactively refresh before TTL expiry.

Interview Tip:

Describe this as a read-heavy resilience pattern. Emphasize proactive + reactive strategies.

---

📦 5. How do you handle large objects that exceed single node memory?

Problem:

• A single large key (e.g., serialized ML model, 1GB) doesn't fit in one node.

✅ Solutions:

1. Key Chunking (Manual Sharding):

   • Split large value into multiple keys (file:1, file:2, file:3).

   • Store each chunk on different nodes.

   • Reassemble during read.

2. Redirect to Object Store:

   • If object > X MB → store in Blob/File system (Azure Blob / GCS).

   • Cache a pointer/reference in cache instead.

3. Use a Tiered Cache:

   • Store large objects in a slower (but scalable) cache (like disk-based).

   • Fast cache for hot small keys; slow cache for bulkier data.

4. Compression:

   • Use lightweight compression (LZ4, Snappy) before storing.

Interview Tip:

Discuss threshold-based offloading and trade-off between latency vs. capacity.

Design a Global Video Streaming Service (e.g., YouTube, Netflix)



Design a Global Video Streaming Service (e.g., YouTube, Netflix)

Question: Design a scalable and fault-tolerant video streaming platform that can:

• Stream videos globally with low latency.

• Allow users to upload videos.

• Handle millions of users simultaneously.

Requirements (functional and non-functional)

functional requirement: video upload, video streaming, handle the network bandwidth, video for the different devices like mobile, smart tv, computer non-function : high availability, fault tolerance

1. High-Level Requirements

Functional Requirements:

• Video Upload: Users can upload videos in various formats.

• Video Streaming: Provide smooth playback with adaptive streaming for different network conditions.

• Network Bandwidth Handling: Adjust video quality dynamically based on bandwidth.

• Device Compatibility: Support multiple devices (e.g., mobile, smart TV, computer).

Non-Functional Requirements:

• High Availability: The service should handle millions of concurrent viewers with minimal downtime.

• Fault Tolerance: The system should recover gracefully from failures like server crashes or network issues.

2. High-Level Design

Here's the architectural breakdown:

1. Frontend: Provides user interface for uploading, browsing, and watching videos.

2. Backend Services:

   • Upload Service: Handles video uploads and metadata storage.

   • Processing Service: Transcodes videos into multiple resolutions and formats.

   • Streaming Service: Delivers videos to users with adaptive bitrate streaming.

3. Content Delivery Network (CDN): Caches videos close to users for low-latency streaming.

4. Database:

   • Metadata storage (e.g., title, description, resolution info).

   • User data (e.g., watch history, preferences).

5. Storage: Distributed storage for original and transcoded videos.

6. Load Balancer: Distributes requests across multiple servers to ensure availability.

3. Capacity Planning

Let’s estimate resource requirements for a system handling 10 million daily users:

Storage:

• Assume 1 million uploads daily, average video size = 100 MB.

• Original videos = 1 million x 100 MB = 100 TB/day.

• Transcoded versions (3 resolutions) = 3 x 100 TB = 300 TB/day.

• For 1 month of storage: 300 TB x 30 days = ~9 PB (Petabytes).

Traffic:

• Assume 10 million users, each streaming an average of 1 hour/day.

• Bitrate for 1080p video: 5 Mbps.

• Total bandwidth required: 10 million x 5 Mbps = 50 Tbps.

• A CDN can offload 80% of traffic, so backend bandwidth = 10 Tbps.

Processing:

• Each video is transcoded into 3 resolutions.

• Average transcoding time per video = 5 minutes.

• Total processing required: 5 minutes x 1 million videos/day = ~83,333 hours/day.

• With 100 servers handling 50 videos/hour, you’ll need ~1,667 servers for transcoding.

4. Detailed Design

Upload Workflow:

1. User uploads video.

2. Upload Service stores the video in temporary storage (e.g., S3 bucket).

3. Metadata (e.g., title, uploader info) is stored in a relational database like PostgreSQL.

4. Processing Service fetches the video, transcodes it into multiple resolutions (e.g., 1080p, 720p, 480p), and stores them in distributed storage (e.g., HDFS).

Streaming Workflow:

1. User requests a video.

2. The Streaming Service retrieves the video metadata.

3. CDN serves the video, reducing load on the backend.

4. Adaptive streaming adjusts resolution based on the user’s available bandwidth.

Device Compatibility:

• Transcode videos into formats like H.264 or H.265 to support multiple devices.

• Use HTML5 players for web and SDKs for smart TVs and mobile devices.

5. Handling Edge Cases

Video Uploads:

• Large Files: Use chunked uploads to handle interruptions.

• Invalid Formats: Validate video format during upload.

Streaming:

• Low Bandwidth: Use adaptive bitrate streaming to lower resolution for slow connections.

• Server Outages: Use replicated storage to serve videos from a different region.

High Traffic:

• Use CDNs to cache popular videos geographically closer to users.

• Auto-scale backend servers to handle traffic spikes.

6. Trade-Offs

1. Storage Cost vs. Quality:

• Storing multiple resolutions increases costs but improves device compatibility.

• You may decide to limit resolutions for infrequently accessed videos.

2. Caching vs. Latency:

• CDNs reduce latency but introduce cache invalidation challenges for newly uploaded videos.

3. Consistency vs. Availability:

• For highly available systems, some metadata (e.g., view counts) may be eventually consistent.

7. Final System Diagram

Here’s what the architecture looks like:

User -> CDN -> Load Balancer -> Streaming Service -> Video Storage
       -> Upload Service -> Processing Service -> Distributed Storage
       -> Metadata DB

Scenario: Design a Scalable URL Shortener

Question:

Imagine you are tasked with designing a system similar to Bitly that converts long URLs into short ones. The system should handle billions of URLs and millions of requests per second. Please explain how you would design this system.

Requirements:

function requirements: shortener, redirection, expiry of url

non-functional: high availability, fault tolerant (like AP from CAP)

Step 1: High-Level Design

At a high level, the system will have the following components:

1. Frontend Service: Handles user requests for shortening, redirection, and URL expiry.

2. Backend Service: Processes requests, generates short URLs, manages expiration policies, and stores mappings.

3. Database: Stores the short-to-long URL mappings.

4. Cache: Speeds up redirection for frequently accessed URLs.

5. Load Balancer: Distributes incoming traffic evenly across backend servers to handle high availability and fault tolerance.

Step 2: Capacity Planning

Now, let's expand on capacity planning for this system:

1. Storage:

   • Assume 1 billion URLs in the system.

   • Average size for a record (short URL + long URL + metadata like expiry date) = 150 bytes.

   • Total storage required: 1 billion x 150 bytes = ~150 GB.

   • With 3x replication for fault tolerance, total storage: ~450 GB.

2. Traffic:

   • Peak traffic: 10,000 requests/sec for redirection.

   • Each server can handle 1,000 requests/sec, so you'll need 10 servers at peak load.

   • Cache hit ratio: Assume 80% of requests hit the cache (Redis).

   • Only 20% of requests (2,000/sec) hit the database.

3. Cache Size:

   • Frequently accessed URLs (~10% of all URLs): 100 million URLs.

   • Average size of a cached record: 150 bytes.

   • Total cache size: ~15 GB (enough for Redis to handle).

4. Bandwidth:

   • Each redirection involves ~500 bytes of data transfer (request + response).

   • For 10,000 requests/sec: 500 bytes x 10,000 = ~5 MB/sec bandwidth requirement.

Step 3: Detailed Design

1. Frontend:

   • Simple UI/API for creating short URLs and redirecting to original URLs.

   • API design:

     • POST /shorten: Accepts a long URL and returns a short URL.

     • GET /redirect/<short-url>: Redirects to the original URL.

2. Backend:

   • URL Shortening:

     • Generate unique short URLs using Base62 encoding or a random hash.

     • Ensure collision resistance by checking the database for duplicates.

   • URL Redirection:

     • Lookup the long URL in the cache first. If not found, fetch it from the database.

   • Expiry Management:

     • Use a background job to periodically clean expired URLs from the database.

3. Database:

   • Use a NoSQL database like Cassandra or DynamoDB for scalability.

   • Key-Value schema:

     • Key: Short URL.

     • Value: Original URL + metadata (creation time, expiry time).

   • Partitioning: Shard data based on the hash of the short URL.

4. Cache:

   • Use Redis for caching frequently accessed URLs.

   • Implement TTL (Time-to-Live) to automatically remove expired cache entries.

5. Load Balancer:

   • Use a load balancer (e.g., Nginx or AWS ELB) to distribute traffic across backend servers.

Step 4: Handling Edge Cases

• Hash Collisions:

  • Handle collisions by appending random characters to the short URL.

• Expired URLs:

  • Redirect users to an error page if the URL has expired.

• Invalid URLs:

  • Validate input URLs before storing them.

• High Traffic Spikes:

  • Scale horizontally by adding more backend and cache servers.

Step 5: CAP Theorem and Non-Functional Requirements

• Consistency (C) is sacrificed since we prefer availability (A) and partition tolerance (P).

• In case of database partitioning, short URLs may not immediately replicate globally but redirections will still work.

Final Diagram

Here’s a simple architecture for your system:

Client -> Load Balancer -> Backend Service -> Cache (Redis) -> Database
                   -> URL Expiry Job -> Clean Expired URLs in Database

This design ensures scalability, fault tolerance, and high availability. Feel free to dive deeper into any component or ask about the trade-offs in the design!

Trade-Off Example: NoSQL vs. Relational Database

Context:

• In the design, we opted for a NoSQL database (e.g., Cassandra or DynamoDB) instead of a relational database like PostgreSQL or MySQL.

Why We Chose NoSQL:

• Scalability: NoSQL databases are horizontally scalable. They can handle billions of records and handle massive traffic by distributing data across multiple servers.

• Write Performance: URL Shorteners primarily involve write-heavy operations (e.g., inserting short-to-long URL mappings). NoSQL databases are optimized for high-throughput writes.

Trade-Off:

1. Consistency vs. Scalability (CAP Theorem):

   • By using a NoSQL database, we prioritize availability (A) and partition tolerance (P) but sacrifice strong consistency (C). This means:

     • Short URL redirections may not immediately reflect updates if replicas are still syncing, but the system stays highly available.

     • For example, in a rare case of a database partition, a newly shortened URL might fail temporarily for a subset of users.

2. Flexible Queries:

• NoSQL databases are optimized for key-value lookups (e.g., finding the long URL from a short one).

• However, if the system later needs advanced queries (e.g., analytics: "show all URLs created in the last 7 days"), a relational database might be better suited.

• This trade-off means we prioritize simplicity and performance for the current use case while limiting flexibility for future feature expansions.Trade-Off Example: Cache vs. Database

  Context:

  • In the design, we opted for a Redis cache to store frequently accessed URLs and reduce latency.

  Why We Chose Redis Cache:

  • Speed: Redis operates in-memory, enabling near-instantaneous lookups compared to database queries.

  • Load Reduction: Redirect requests are served from the cache, offloading pressure from the database.

  • TTL: Redis supports Time-to-Live (TTL), allowing expired URLs to be removed automatically without database intervention.

  Trade-Off:

  1. Cache Hit vs. Miss:

     • Hit: When the short URL is found in the cache, the lookup is fast.

     • Miss: If the URL is not in the cache, the system falls back to querying the database, which is slower.

     • Example: If the cache hit ratio drops to 50% due to infrequently accessed URLs, latency increases, and the database may face higher load.

  2. Memory Usage vs. Scalability:

     • Redis stores all data in memory, which is expensive compared to disk storage.

     • Example: If we want to cache 1 billion URLs (about 150 GB), the cost of high-memory servers for Redis becomes a concern.

     • Trade-off: We limit caching to the most frequently accessed URLs (~10% of all URLs).

  3. Consistency vs. Performance:

     • If updates are made directly to the database (e.g., URL expiry or analytics tracking), the cache may hold stale data temporarily until refreshed.

     • Trade-off: Sacrifice real-time consistency to prioritize performance for redirection requests.

Trade-Off Example: Cache vs. Database

Context:

• In the design, we opted for a Redis cache to store frequently accessed URLs and reduce latency.

Why We Chose Redis Cache:

• Speed: Redis operates in-memory, enabling near-instantaneous lookups compared to database queries.

• Load Reduction: Redirect requests are served from the cache, offloading pressure from the database.

• TTL: Redis supports Time-to-Live (TTL), allowing expired URLs to be removed automatically without database intervention.

Trade-Off:

1. Cache Hit vs. Miss:

   • Hit: When the short URL is found in the cache, the lookup is fast.

   • Miss: If the URL is not in the cache, the system falls back to querying the database, which is slower.

   • Example: If the cache hit ratio drops to 50% due to infrequently accessed URLs, latency increases, and the database may face higher load.

2. Memory Usage vs. Scalability:

   • Redis stores all data in memory, which is expensive compared to disk storage.

   • Example: If we want to cache 1 billion URLs (about 150 GB), the cost of high-memory servers for Redis becomes a concern.

   • Trade-off: We limit caching to the most frequently accessed URLs (~10% of all URLs).

3. Consistency vs. Performance:

   • If updates are made directly to the database (e.g., URL expiry or analytics tracking), the cache may hold stale data temporarily until refreshed.

   • Trade-off: Sacrifice real-time consistency to prioritize performance for redirection requests.

Trade-Off Example: Failure Recovery Mechanisms

Context:

To ensure high availability and fault tolerance, the system should recover gracefully when components fail (e.g., a server crash or cache failure). We incorporated replication and fallback strategies in the design.

Mechanisms for Recovery:

1. Database Replication:

   • Multiple copies (replicas) of the database ensure availability even if one server fails.

   • Trade-Off:

     • Benefit: High availability and low risk of data loss.

     • Cost: Increased storage needs and replication overhead. If data needs to replicate across multiple nodes, write latency may increase.

     • Example: Updating a short URL mapping might take milliseconds longer due to replica sync delays.

2. Cache Fallback to Database:

   • If the Redis cache goes down, the system queries the database directly.

   • Trade-Off:

     • Benefit: Ensures continuity of service for redirection requests.

     • Cost: Database will experience increased load during cache outages, resulting in higher latency and potential bottlenecks under peak traffic.

     • Example: During a cache failure, redirection latency might increase from 1ms to 10ms.

3. Load Balancers with Failover:

   • Load balancers redirect traffic from failed servers to healthy servers.

   • Trade-Off:

     • Benefit: Users don’t notice server outages as requests are rerouted.

     • Cost: Adding failover capabilities increases infrastructure complexity and cost.

     • Example: Keeping additional standby servers can increase operational costs by 20%.

4. Backups for Disaster Recovery:

   • Regular backups of database and metadata ensure recovery in case of catastrophic failures (e.g., data corruption).

   • Trade-Off:

     • Benefit: Prevents permanent data loss and ensures the system is recoverable.

     • Cost: Backup systems require extra storage and may not include real-time data due to backup frequency.

     • Example: If backups occur daily, URLs created just before failure might be lost.

5. Retry Logic and Circuit Breakers:

   • Implement retries for transient failures and circuit breakers to avoid overwhelming downstream services.

   • Trade-Off:

     • Benefit: Improves reliability for users during intermittent failures.

     • Cost: Retries add latency and may temporarily strain the system.

     • Example: If the database is slow, retry logic might delay redirections by a few milliseconds.

Google system design interview experience

To excel in a system design interview at Google India, you’ll need a structured, methodical approach while demonstrating clarity and confidence. Here’s how you can handle system design questions effectively:

1. Understand the Problem Statement

• Before diving in, clarify the requirements:

  • Ask questions to understand functional requirements (e.g., "What features does the system need?").

  • Explore non-functional requirements like scalability, performance, reliability, and security.

• Example: If asked to design a URL shortener, clarify if analytics tracking or expiration for URLs is required.

2. Start with a High-Level Approach

• Begin by breaking the problem into logical components. Use simple terms initially:

  • For example: "For a URL shortener, we need to generate short URLs, store mappings, and support quick redirections."

• Draw a rough block diagram:

  • Show user interaction, application servers, caching layers, databases, etc.

  • Use terms like "user sends request," "application generates short URL," and "database stores mapping."

3. Dive Deeper into Core Components

• Now, drill down into the architecture:

  • Database: What type of database fits the use case? Relational vs. NoSQL?

  • Caching: When and where to add caching for performance optimization.

  • Load Balancing: How to distribute requests across servers.

  • Scalability: Vertical (adding more resources to a server) and horizontal scaling (adding more servers).

4. Capacity Planning

• Show your ability to handle real-world use cases by estimating resource needs:

  • Storage: How much data will the system store? Estimate based on user base and data size.

  • Traffic: How many requests per second must the system handle during peak load?

  • Throughput: Calculate bandwidth requirements.

5. Address Edge Cases

• Always include these discussions:

  • How will the system behave under high traffic?

  • What happens if a component fails? (e.g., database failure).

  • How will data integrity and consistency be maintained in distributed systems?

6. Incorporate Non-Functional Requirements

• Discuss how your design meets:

  • Reliability: Use replication and backups.

  • Fault Tolerance: Explain failure recovery mechanisms.

  • Security: Include encryption for sensitive data and authentication for user actions.

7. Trade-Offs and Justifications

• Google interviewers love to see pragmatic thinking:

  • Explain why you chose one database over another (e.g., "NoSQL for scalability, as this system doesn't require complex joins").

  • Discuss trade-offs like cost vs. performance or consistency vs. availability (CAP theorem).

8. Be Collaborative and Communicative

• Keep your thought process transparent:

  • Think out loud and explain your reasoning for every step.

  • If an interviewer questions your approach, handle it constructively and adapt your design if necessary.

• Use Google’s "smart generalist" mindset—balance depth with breadth.

9. Final Review and Summary

• Summarize your solution briefly:

  • Reiterate key design choices and how they align with the requirements.

• Example: "In summary, I designed a scalable URL shortener with a distributed database for storage, Redis for caching popular URLs, and load balancers for handling traffic peaks."

10. Practice Mock Interviews

• Prepare for common system design scenarios:

  • Design a scalable chat application.

  • Build a global video streaming service.

  • Create a recommendation system for an e-commerce platform.

• Practice with peers or mentors to refine your communication and problem-solving skills.

I'll approach these system design questions as a Google engineer, incorporating edge cases, design diagrams, capacity planning, and non-functional requirements. Let's dive in:

1. Design a URL Shortener (e.g., bit.ly)

Requirements

• Functional: Shorten URLs, redirect to original URLs, track usage statistics.

• Non-functional: Scalability, low latency, fault tolerance, high availability.

Design

1. Architecture:

   • Use a hashing algorithm (e.g., Base62 encoding) to generate unique short URLs.

   • Store mappings in a distributed NoSQL database (e.g., DynamoDB or Cassandra).

   • Implement caching (e.g., Redis) for frequently accessed URLs.

   • Use load balancers to distribute traffic across servers.

2. Capacity Planning:

   • Storage:

     • Assume 1 billion URLs with an average of 100 bytes per URL (short + original URLs combined).

     • Total storage: 100 GB for URL mappings.

     • If we store analytics (e.g., click counts), assume an additional 50 GB for statistics.

   • Traffic:

     • Peak load: 10,000 requests per second (short URL redirection).

     • Use Redis cache to handle the most frequently accessed URLs. Cache size: 20 GB.

     • Throughput: Each server can process 1,000 requests/sec. At least 10 servers needed for peak traffic.

3. Edge Cases:

   • Collision: Handle hash collisions by appending random characters.

   • Expired URLs: Implement TTL (Time-to-Live) for temporary URLs.

   • Invalid URLs: Validate URLs before shortening.

Diagram

Client -> Load Balancer -> Application Server -> Database
       -> Cache (Redis) -> Database

2. Design a Scalable Chat Application

Requirements

• Functional: Real-time messaging, group chats, message history.

• Non-functional: Scalability, low latency, fault tolerance.

Design

1. Architecture:

   • Use WebSocket for real-time communication.

   • Store messages in a distributed database (e.g., Cassandra).

   • Implement sharding based on user IDs.

   • Use message queues (e.g., Kafka) for asynchronous processing.

2. Capacity Planning:

   • Storage:

     • Assume 10 million users, with each user sending 100 messages/day.

     • Average message size: 200 bytes.

     • Total storage per day: 200 GB.

     • For 1 year of history: 73 TB.

   • Traffic:

     • Peak load: 100,000 concurrent connections.

     • WebSocket servers: Each server handles 5,000 connections. At least 20 servers required during peak hours.

     • Use Kafka for asynchronous processing; throughput: 1 million messages/sec.

3. Edge Cases:

   • Offline Users: Queue messages for delivery when users reconnect.

   • Message Ordering: Use sequence numbers to ensure correct ordering.

   • Spam: Implement rate limiting and spam detection.

Diagram

Client -> WebSocket Server -> Message Queue -> Database

3. Design a Ride-Sharing Service (e.g., Uber)

Requirements

• Functional: Match riders with drivers, calculate fares, track rides.

• Non-functional: Scalability, real-time updates, fault tolerance.

Design

1. Architecture:

   • Use GPS-based tracking for real-time updates.

   • Implement a matching algorithm to pair riders with nearby drivers.

   • Store ride data in a relational database (e.g., PostgreSQL).

2. Capacity Planning:

   • Storage:

     • Assume 1 million rides/day, with each ride generating 10 updates (e.g., location, fare, etc.).

     • Average update size: 500 bytes.

     • Total storage per day: 5 GB.

     • For 1 year: 1.8 TB (for historical data storage).

   • Traffic:

     • Peak load: 10,000 ride matching requests/sec.

     • Use 10 application servers, each handling 1,000 requests/sec.

     • GPS tracking: Real-time updates require 50 MB/sec bandwidth.

3. Edge Cases:

   • Surge Pricing: Implement dynamic pricing based on demand.

   • Driver Cancellations: Reassign rides to other drivers.

   • Network Failures: Use retries and fallback mechanisms.

Diagram

Client -> Load Balancer -> Application Server -> Database
       -> GPS Tracking -> Matching Algorithm

4. Design a Distributed File Storage System (e.g., Google Drive)

Requirements

• Functional: Upload/download files, share files, version control.

• Non-functional: Scalability, fault tolerance, high availability.

Design

1. Architecture:

   • Use distributed storage (e.g., HDFS) for file storage.

   • Implement replication for fault tolerance.

   • Use metadata servers to track file locations.

2. Capacity Planning:

   • Storage:

     • Assume 1 billion files, with an average size of 1 MB.

     • Total storage: 1 PB.

     • For replication (3 copies): 3 PB.

   • Traffic:

     • Peak load: 10,000 uploads/downloads/sec.

     • Each server handles 1,000 requests/sec. At least 10 servers required.

     • Metadata size for tracking files: 100 TB.

3. Edge Cases:

   • Large Files: Split files into chunks for efficient uploads/downloads.

   • Conflicts: Implement version control for concurrent edits.

   • Data Loss: Use replication and backups.

Diagram

Client -> Metadata Server -> Distributed Storage

5. Design a Search Engine

Requirements

• Functional: Index web pages, return relevant results, handle queries.

• Non-functional: Scalability, low latency, fault tolerance.

Design

1. Architecture:

   • Use web crawlers to index pages.

   • Store indexed data in a distributed database.

   • Implement ranking algorithms (e.g., PageRank).

2. Capacity Planning:

   • Storage:

     • Assume 1 billion web pages, with an average size of 10 KB per page.

     • Total storage: 10 TB.

     • For additional metadata (e.g., indexing terms), storage increases to 20 TB.

   • Traffic:

     • Peak load: 100,000 search queries/sec.

     • Each server handles 1,000 queries/sec. At least 100 servers required.

     • Cache size for popular queries: 5 TB.

3. Edge Cases:

   • Spam Pages: Filter out low-quality pages using heuristics.

   • Query Failures: Provide fallback results.

   • High Traffic: Use caching for popular queries.

Diagram

Client -> Load Balancer -> Search Server -> Database
       -> Web Crawler -> Indexing

These answers incorporate edge cases, design diagrams, capacity planning, and non-functional requirements. Let me know if you'd like to explore any of these designs further or add more details! 😊

🎯 Design a Scalable System to Monitor AI/ML Training Workloads



🎯 Design a Scalable System to Monitor AI/ML Training Workloads

🚀 Prompt:

Design a system that monitors distributed AI/ML training jobs across thousands of compute nodes (e.g., GPUs/TPUs) running in Google Cloud.

The system should collect, process, and surface metrics like:

• GPU utilization

• Memory consumption

• Training throughput

• Model accuracy over time

It should support real-time dashboards and alerts when anomalies or performance degradation are detected.

---

🔍 1. Clarifying Questions

Ask these before diving into design:

• How frequently should metrics be collected? (e.g., every second, every minute?)

• Are we targeting batch training jobs, online inference, or both?

• Do we need historical analysis (long-term storage), or just real-time?

• Should users be able to define custom metrics or thresholds?

---

🧱 2. High-Level Architecture

[ML Training Nodes]
     |
     | (Metrics via agents or exporters)
     v
[Metrics Collector Service]
     |
     | (Kafka / PubSub)
     v
[Stream Processor] -----------+
     |                        |
     | (Aggregated Metrics)   | (Anomaly Detection)
     v                        v
[Time Series DB]        [Alert Engine]
     |
     v
[Dashboard / API / UI]

---

🧠 3. Component Breakdown

A. Metrics Collection Agent

• Lightweight agent on each ML node

• Exports GPU usage, training logs, memory, accuracy, etc.

• Use formats like OpenTelemetry, Prometheus exporters

B. Ingestion Layer (Pub/Sub or Kafka)

• High-throughput, fault-tolerant transport layer

• Decouples training nodes from processing

C. Stream Processing

• Use Apache Flink, Dataflow, or Beam

• Tasks:

  • Aggregation (e.g., avg GPU utilization every 10s)

  • Metric transformations

  • Flag anomalies

D. Storage Layer

• Time-Series DB: InfluxDB, Prometheus, or Bigtable for long-term

• Can partition per job ID, node ID, timestamp

E. Alerting & Anomaly Detection

• Rules-based + ML-based anomaly detection (Z-score, drift detection)

• Push to:

  • Stackdriver alerts

  • Email/SMS/Slack/etc.

F. Dashboard/UI

• Real-time graphing (Grafana / custom UI)

• Heatmaps for job status

• Historical comparisons

---

🧠 4. Key Considerations

📈 Scalability

• Must support 100K+ jobs

• Shard by job or region

• Horizontal scale on collectors and processors

⏱️ Latency

• Near real-time (<5s) for alerts

• Use caching and batch windowing to reduce pressure

🔐 Security

• Authentication for agents

• Role-based access control for metrics

🧰 Extensibility

• Plug-in support for new ML frameworks (TensorFlow, PyTorch)

• Custom user-defined metrics

---

📊 Optional Enhancements (Great to Mention!)

• Model drift detection via training-vs-inference delta

• Auto-throttling or re-scheduling of slow jobs

• Integration with Google Vizier for HPO feedback loop

---

📣 What Google Might Ask

• How do you handle data loss if a node crashes?

• How would you store and index petabytes of metrics?

• What trade-offs do you make between real-time vs. cost?

• How would you test this system under stress?

---

Absolutely — let’s break down strong, Staff-level answers to the “What Google Might Ask” section of the system design interview, tailored for the CMCS ML role.

---

🔍 1. How do you handle data loss if a node crashes?

Answer:

To minimize data loss from node crashes:

• At the agent level:

  • Metrics are buffered locally with a short TTL (e.g., 5–10 minutes).

  • If the Pub/Sub push fails (e.g., network blip), retry logic with exponential backoff is implemented.

• At the transport layer (Kafka or Pub/Sub):

  • Ensure at-least-once delivery semantics.

  • Use acknowledgment-based processing to ensure downstream consumers only process committed messages.

• In stream processors:

  • Stateful operators checkpoint to persistent storage (e.g., GCS, BigQuery).

  • If the processor crashes, it can resume from the last consistent state.

This layered fault-tolerance ensures end-to-end durability and reduces the blast radius of any individual component failure.

---

⚙️ 2. How would you store and index petabytes of metrics?

Answer:

• Use a time-series optimized storage engine like:

  • Bigtable or OpenTSDB for massive scale and horizontal partitioning.

  • Or Prometheus for short-term, and Google Cloud Monitoring or BigQuery for long-term historical aggregation.

• Sharding keys: job_id, node_id, timestamp — this enables parallel writes and targeted reads.

• Cold storage: Older data beyond 30 days can be aggregated and offloaded to GCS or BigQuery for cost efficiency.

• Indexes:

  • Composite indexes on job_id + timestamp or metric_type + job_status for alerting and dashboard queries.

Petabyte-scale systems require aggressive pre-aggregation, time bucketing, and TTL policies to keep operational cost low.

---

🧠 3. What trade-offs do you make between real-time vs. cost?

Answer:

This is all about balancing SLOs with system complexity and cost:

Real-time Focus	Cost-Efficient Focus
<5s latency	~1 min latency
Raw metric granularity	Batched/aggregated metrics
More compute and storage	Lower infra costs

• For critical alerts (e.g., GPU stalled, accuracy dropped), we prioritize low-latency processing.

• For dashboards or weekly reports, we rely on aggregated/batch pipelines.

We may run dual pipelines:

• Fast path → Stream (Flink/Dataflow) for real-time.

• Slow path → Batch (BigQuery/Beam) for cost-optimized archival.

---

🧪 4. How would you test this system under stress?

Answer:

A combination of load, chaos, and soak testing:

🔧 Load Testing:

• Simulate 100K concurrent training jobs publishing metrics every second.

• Use tools like Locust or K6, or write a custom gRPC emitter.

💥 Chaos Testing:

• Inject faults using Chaos Monkey-style scripts:

  • Kill nodes

  • Drop metrics

  • Induce network partition

🕰 Soak Testing:

• Run the system continuously for days to check for:

  • Memory leaks

  • Buffer overflows

  • DB index performance degradation

✅ Metrics to Monitor:

• System throughput

• Event lag

• Error rates

• GC/memory usage

---

🚀 Bonus: How would you make this system self-healing?

Answer:

• Use Kubernetes to auto-restart unhealthy pods (agents, collectors).

• Health checks + alerts trigger incident workflows.

• Auto-scale components based on message backlog (e.g., Pub/Sub lag).

• Design for idempotent and stateless processing wherever possible.

Here's a one-to-one mapping of the components used in the Google Cloud-based ML monitoring system design with equivalent Azure services, so you’re fully prepared if asked to design on Azure Cloud instead.

---

🔁 Google Cloud to Azure Mapping for ML Workload Monitoring System

Component	Google Cloud	Azure Equivalent
Metrics Ingestion (Queue)	Pub/Sub	Azure Event Hubs or Azure Service Bus
Stream Processing	Cloud Dataflow (Apache Beam)	Azure Stream Analytics or Azure Data Explorer (ADX)
		Or use Apache Flink on Azure HDInsight / Synapse
Metrics Collector Service	Custom service + GKE	Custom app hosted on Azure Kubernetes Service (AKS)
Time-Series Storage	Bigtable / Prometheus / Cloud Monitoring	Azure Data Explorer (Kusto DB) or Azure Monitor Metrics
Historical / Long-Term Storage	BigQuery / GCS	Azure Data Lake / Azure Synapse Analytics
Dashboard / Visualization	Grafana / Looker / Cloud Monitoring UI	Azure Monitor Dashboards, Power BI, or Grafana on Azure
Alerting / Notifications	Cloud Monitoring + Alerting	Azure Monitor Alerts, Action Groups, Log Analytics Alerts
Custom ML Workload Monitoring	TensorBoard / Custom Agents	Azure ML Monitoring or Application Insights SDK
Container Orchestration	Google Kubernetes Engine (GKE)	Azure Kubernetes Service (AKS)
Security / IAM	IAM / Service Accounts	Azure Active Directory (AAD) / Managed Identities

---

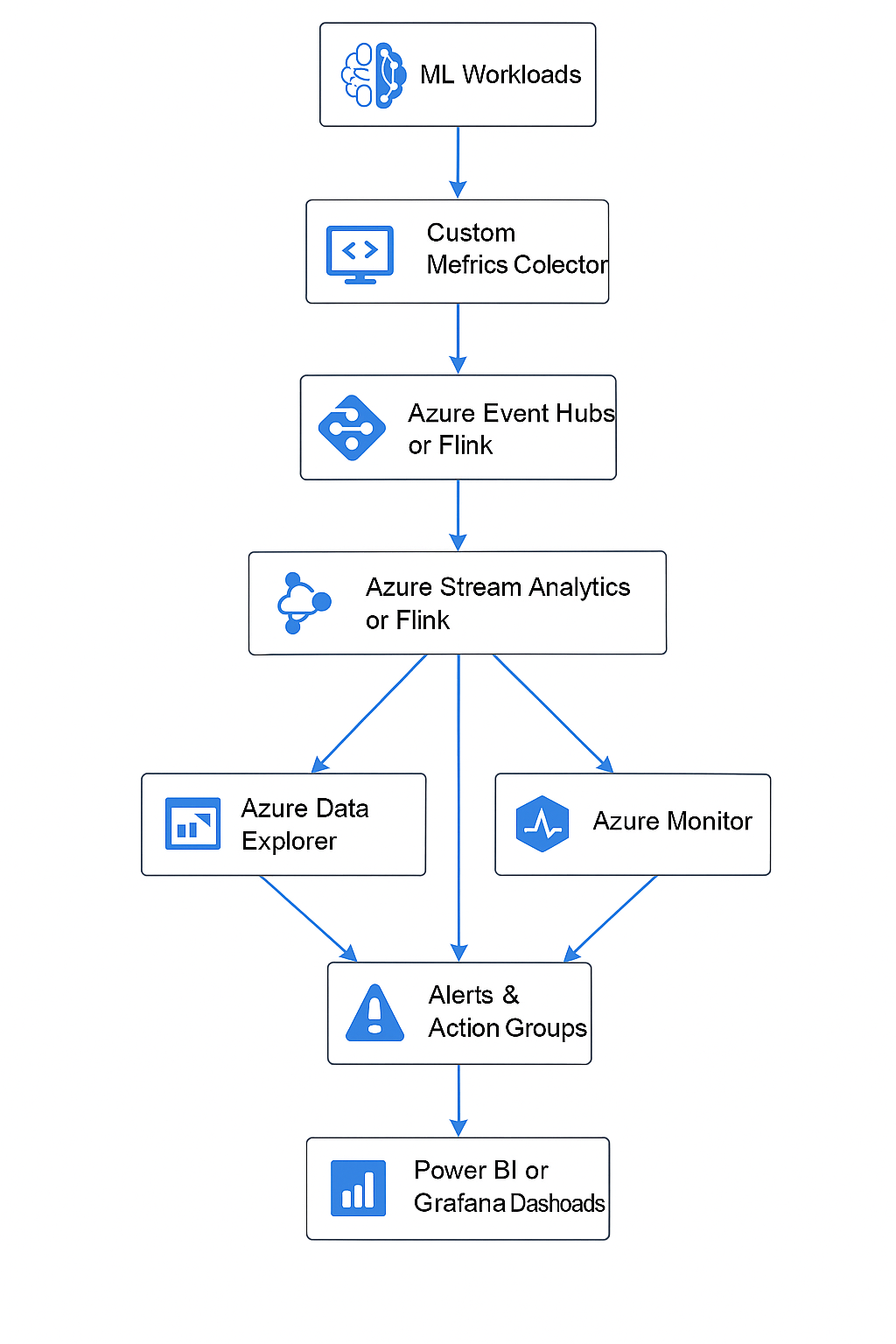

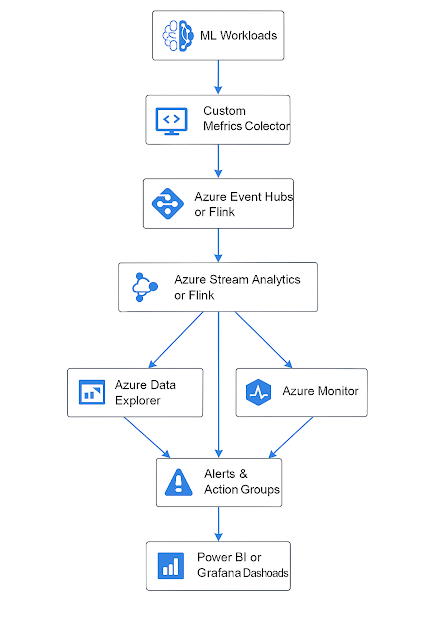

🧠 Example: Full Azure-Based Architecture Flow

[Training Nodes with App Insights SDK]
      |
      v
[Custom Metrics Collector (on AKS)]
      |
      v
[Azure Event Hubs]
      |
      v
[Azure Stream Analytics / Flink]
      |
+----------------+------------------+
|                |                  |
v                v                  v
[Azure Data Explorer]      [Azure Monitor]       [Alerts & Action Groups]
      |
      v
[Power BI / Grafana Dashboards]

---

🛠️ Notes on Azure-Specific Features

• Azure Monitor + Log Analytics can capture near-real-time telemetry from ML jobs if using Application Insights SDK or custom exporters.

• Azure Data Explorer (ADX) is optimized for time-series and telemetry — excellent for ML metrics storage and querying at scale.

• Azure ML now includes some native monitoring capabilities like tracking accuracy, drift, and CPU/GPU metrics per job.

Preparing for a senior engineering leadership interview at Google

 Preparing for a senior engineering leadership interview at Google India is an exciting challenge! Based on the references you provided and additional insights, here are some tailored questions and answers to help you prepare:

Leadership & Behavioral

1. Tell me about a time you had a difficult team member. How did you handle the situation? What were the outcomes?

   • Answer: Use the STAR method. For example, describe a situation where a team member was resistant to feedback. Explain how you approached them with empathy, provided constructive feedback, and set clear expectations. Highlight the positive outcomes, such as improved collaboration and project success.

2. Describe your leadership style. How do you motivate and guide your team?

   • Answer: Share your leadership philosophy, emphasizing adaptability, empowerment, and clear communication. Provide examples of how you’ve motivated your team, such as recognizing achievements or fostering a culture of innovation.

Project Management

1. How do you ensure projects stay on time and within budget? What tools and techniques do you use?

   • Answer: Discuss your experience with project management tools like Jira or Trello, and methodologies like Agile or Scrum. Highlight your ability to set realistic timelines, monitor progress, and proactively address risks.

2. How do you handle project scope creep? How do you communicate changes to stakeholders?

   • Answer: Explain how you prioritize tasks, manage expectations, and use change management strategies. Share an example where you successfully navigated scope changes while maintaining stakeholder trust.

Technical

1. How would you design a system for [specific Google product/service]?

   • Answer: Provide a high-level overview of your approach to system design, focusing on scalability, reliability, and user experience. Mention tools and technologies you’d use, such as cloud services or microservices architecture.

2. How do you ensure the quality and reliability of your code? What testing strategies do you employ?

   • Answer: Discuss your experience with unit testing, integration testing, and code reviews. Highlight your commitment to best practices like CI/CD pipelines and automated testing.

Googleyness

1. Why do you want to work at Google? What excites you about the company and its culture?

   • Answer: Share your admiration for Google’s innovation, values, and impact on technology. Connect your skills and experiences to Google’s mission and culture.

2. How would you describe [specific Google product/service] to a 6-year-old?

   • Answer: Use simple language and relatable analogies. For example, “Gmail is like a magic mailbox where you can send and receive letters instantly, without paper.”

Preparation Tips

• Research Google’s values and culture, focusing on what it means to be “Google-y.”

• Practice answering behavioral questions using the STAR method.

• Review technical concepts, including system design, algorithms, and coding problems.

• Reflect on your past experiences and how they demonstrate leadership, problem-solving, and innovation.

Here are sample answers for the questions you provided, tailored to honor Google's values and culture, focusing on being "Google-y":

Leadership & Behavioral

1. Tell me about a time you had a difficult team member. How did you handle the situation? What were the outcomes?

   • Answer: "In a previous role, I had a team member who was resistant to feedback and often missed deadlines. I scheduled a one-on-one meeting to understand their perspective and challenges. By actively listening and empathizing, I identified areas where they needed support. I provided clear expectations and offered mentorship. Over time, their performance improved, and they became a valuable contributor to the team."

2. Describe your leadership style. How do you motivate and guide your team?

   • Answer: "My leadership style is collaborative and empowering. I believe in fostering a culture of innovation and trust. I motivate my team by recognizing their achievements, providing constructive feedback, and encouraging them to take ownership of their work. For example, I once organized a hackathon within my team to spark creativity and boost morale."

Project Management

1. How do you ensure projects stay on time and within budget? What tools and techniques do you use?

   • Answer: "I use Agile methodologies and tools like Jira to track progress and manage tasks. I set realistic timelines, conduct regular check-ins, and proactively address risks. For instance, in a recent project, I identified potential delays early and reallocated resources to ensure we met our deadlines without exceeding the budget."

2. How do you handle project scope creep? How do you communicate changes to stakeholders?

   • Answer: "I prioritize tasks and use change management strategies to address scope creep. I ensure transparent communication with stakeholders by providing regular updates and explaining the impact of changes. In one project, I successfully negotiated scope adjustments with stakeholders while maintaining their trust and satisfaction."

Technical

1. How would you design a system for [specific Google product/service]?

   • Answer: "I would approach system design by focusing on scalability, reliability, and user experience. For example, designing a system for YouTube Shorts would involve using microservices architecture, cloud storage solutions, and efficient content delivery networks to ensure seamless video playback and scalability."

2. How do you ensure the quality and reliability of your code? What testing strategies do you employ?

   • Answer: "I follow best practices like code reviews, unit testing, and integration testing. I also implement CI/CD pipelines for automated testing and deployment. For instance, in a recent project, I used these strategies to reduce bugs and improve code reliability."

Googleyness

1. Why do you want to work at Google? What excites you about the company and its culture?

   • Answer: "Google's commitment to innovation, diversity, and making a positive impact on the world resonates with me. I admire its culture of collaboration and its focus on solving complex problems. I am excited about contributing to projects that align with Google's mission to organize the world's information and make it universally accessible."

2. How would you describe [specific Google product/service] to a 6-year-old?

   • Answer: "Gmail is like a magic mailbox where you can send and receive letters instantly, without paper. It's super fast and helps you stay connected with friends and family."

Preparation Tips

• Practice answering behavioral questions using the STAR method (Situation, Task, Action, Result).

• Reflect on your past experiences and how they demonstrate leadership, problem-solving, and innovation.

• Research Google's values and culture, focusing on what it means to be "Google-y."

Question: How do you ensure your team stays innovative and aligned with Google's mission and goals?

Answer:

• Situation: In my current role, I was leading a cross-functional team responsible for developing a complex software solution. The project required creativity and alignment with the broader business goals to meet tight deadlines and deliver high impact.

• Task: The challenge was to ensure that the team stayed innovative while maintaining focus on project objectives and adhering to Agile methodologies.

• Action: To address this, I utilized tools like Jira and Azure DevOps to plan and track project milestones. I introduced collaborative decision-making sessions where team members proposed ideas for achieving project goals in innovative ways. Additionally, I organized daily scrum meetings to monitor progress, identify blockers, and encourage open communication. To foster innovation, I implemented a quarterly hackathon where team members could freely experiment and present solutions aligned with the project goals.

• Result: These strategies resulted in increased team engagement and creativity. The project was delivered on time and exceeded expectations, with several innovative features that delighted stakeholders. Moreover, the collaborative environment enhanced team alignment with the mission and contributed to ongoing improvements in our processes.

Fine-tuning a pre-trained LLM like GPT!

 Fine-tuning a pre-trained LLM like GPT is an exciting step, as it allows you to adapt an existing model to specific tasks. Let’s get started!

What is Fine-Tuning?

Fine-tuning adjusts the weights of a pre-trained model to specialize it for a particular task. For example:

• A customer service chatbot

• A legal document summarizer

• A creative writing assistant

What Tools and Libraries Do You Need?

1. Python: Our programming language.

2. Hugging Face's Transformers Library: Simplifies working with LLMs.

3. Datasets: Custom text data for fine-tuning.

4. Hardware: A GPU (cloud platforms like Google Colab are great for this).

Let’s proceed with an example using Hugging Face.

Step-by-Step Fine-Tuning with Hugging Face

Step 1: Install the Required Libraries

Install Hugging Face Transformers and Datasets.

Step 1: Install Python

Ensure you have Python installed (preferably version 3.8 or higher).

• Download Python from python.org.
• Follow installation instructions for your operating system.

Step 2: Install a Code Editor (Optional)

Use a code editor for better productivity. Here are some options:

• VS Code: Download here.
• Jupyter Notebook: Ideal for interactive coding (install via pip).

Step 3: Set Up a Virtual Environment

Create an isolated Python environment for your project to avoid dependency issues.

 python -m venv env

source env/bin/activate   # For Linux/Mac
env\Scripts\activate      # For Windows

Step 4: Install Additional Tools
Install other useful libraries:
numpy: For mathematical operations.
pandas: For data manipulation.
tqdm: For progress tracking.
pip install numpy pandas tqdm
Note* You might also need PyTorch. Install it based on your system configuration (CPU or GPU):


pip install torch

Step 5: Set Up the Dataset

Prepare the dataset for training.

1. Local Dataset:
• Create a text file data.txt with your training data (one sentence per line).
2. Public Datasets:
• Use Hugging Face’s datasets library to load ready-made datasets.

Step 6: Access a GPU (Optional)

Fine-tuning requires significant computation power. If you don’t have a GPU locally, try:

• Google Colab (Free, with GPU support): Visit colab.research.google.com.
• Cloud Platforms:
• AWS EC2 with NVIDIA GPUs
• Azure Machine Learning
• Google Cloud AI Platform

Step 7: Test Your Environment

Run the following snippet to ensure everything is working:

from transformers import GPT2Tokenizer, GPT2LMHeadModel

model_name = "gpt2"

tokenizer = GPT2Tokenizer.from_pretrained(model_name)

model = GPT2LMHeadModel.from_pretrained(model_name)



print("Environment is set up!")

Next Steps

Once your environment is ready:

1. Begin fine-tuning GPT as described earlier.
2. Let me know if you face any setup issues—I’m here to troubleshoot!
3. Once we complete fine-tuning, we can explore deployment techniques for your model.
